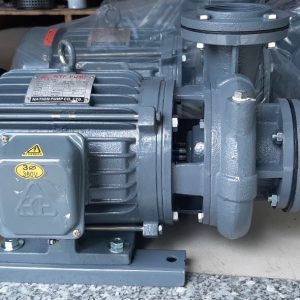

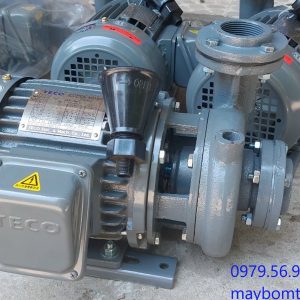

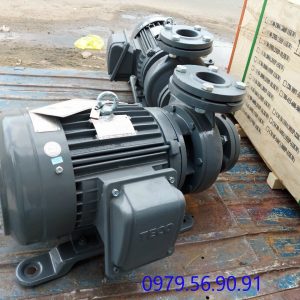

Bơm Nước TeCo
Thông Số kỹ thuật:
Công suất: 2 HP
Điện áp: 380V/50Hz
Lưu lượng max m3/h: 8.8 – 12.5 – 16.3
Cột áp max: 21.5 – 20.0 – 17.8
Hỏng xã: 65mm
Vật liệu đầu bơm, Cánh bơm, : Gang/ HT 200
Phớt làm kín: C/ Al2O3
Trục: Thép không gỉ: 00Cr12
Bảng Giá Máy Bơm Nước Teco:
| Model | Công suất (Hp) |
Điện áp (V/Hz) |
Lưu lượng max (M3/H) | Cột áp max (m) | Họng xả (mm) |
Đơn giá chưa VAT |
| G30-25-2P-0.5HP | 0.5HP | 380 | 2.0-2.5-.3.0 | 15.0-13.0-12.0 | 25 | 6,980,000 |
| G31-40-2P-1HP | 1HP | 380 | 7.2-9.0-10.8 | 13.0-11.5-10.5 | 40 | 8,810,000 |
| G31-50-2P-1HP | 1HP | 380 | 12.8-16.0-19.2 | 9.5-8.0-7.0 | 50 | 9,150,000 |
| G32-40-2P-2HP | 2HP | 380 | 8.8-11.0-13.2 | 17.5-16.0-14.0 | 40 | 10,100,000 |
| G32-50-2P-2HP | 2HP | 380 | 8.8-12.5-16.3 | 21.5-20.0-17.8 | 50 | 10,190,000 |
| G32-65-2P-2HP | 2HP | 380 | 16.8-21.0-25.2 | 16.5-15.0-13.0 | 65 | 11,200,000 |
| G33-50-2P-3HP | 3HP | 380 | 9.4-11.7-14.0 | 29.5-28.0-25.0 | 50 | 11,750,000 |
| G33-65-2P-3HP | 3HP | 380 | 16.0-22.3-29.0 | 20.0-18.0-14.0 | 65 | 11,600,000 |
| G33-80-2P-3HP | 3HP | 380 | 32.0-40.0-46.0 | 16.0-12.0-10.0 | 80 | 12,630,000 |
| G35-50-2P-5HP | 5HP | 380 | 9.4-11.7-13.0 | 46.0-44.0-40.0 | 50 | 15,290,000 |
| G35-65-2P-5HP | 5HP | 380 | 20.0-25.0-30.0 | 34.0-32.0-28.0 | 65 | 15,310,000 |
| G35-80-2P-5HP | 5HP | 380 | 35.8-44.7-53.6 | 18.0-16.0-14.0 | 80 | 15,560,000 |
| G35-100-2P-5HP | 5HP | 380 | 56.0-70.0-84.0 | 13.5-12.0-10.0 | 100 | 16,720,000 |
| G37-50-2P-7.5HP | 7.5HP | 380 | 10.0-12.5-15.0 | 52.0-50.0-47.0 | 50 | 19,540,000 |
| G37-65-2P-7.5HP | 7.5HP | 380 | 17.4-21.7-26.0 | 40.5-38.0-34.0 | 65 | 20,300,000 |
| G37-80-2P-7.5HP | 7.5HP | 380 | 34.6-43.3-52.0 | 26.0-24.0-21.0 | 80 | 20,920,000 |
| G37-100-2P-7.5HP | 7.5HP | 380 | 68.0-85.0-102.0 | 17.5-16.0-14.0 | 100 | 20,930,000 |
| G310-50-2P-10HP | 10HP | 380 | 9.4-11.7-13.0 | 72.0-70.0-66.0 | 50 | 23,630,000 |
| G310-65-2P-10HP | 10HP | 380 | 20.0-25.0-30.0 | 51.5-50.0-47.0 | 65 | 23,640,000 |
| G310-80-2P-10HP | 10HP | 380 | 32.0-40.0-48.0 | 38.0-36.0-33.0 | 80 | 23,220,000 |
| G310-100-2P-10HP | 10HP | 380 | 72.0-90.0-108.0 | 22.5-20.0-18.0 | 100 | 23,640,000 |
| G315-65-2P-15HP | 15HP | 380 | 18.4-23.0-27.6 | 72.0-70.0-66.5 | 65 | 32,970,000 |
| G315-80-2P-15HP | 15HP | 380 | 37.4-46.8-56.2 | 46.5-44.0-41.0 | 80 | 32,070,000 |
| G315-100-2P-15HP | 15HP | 380 | 72.0-90.0-108.0 | 31.5-28.0-26.0 | 100 | 32,550,000 |
| G320-65-2P-20HP | 20HP | 380 | 20.0-25.0-30.0 | 82.0-80.0-74.0 | 65 | 35,660,000 |
| G320-80-2P-20HP | 20HP | 380 | 34.6-43.3-52.0 | 64.0-60.0-57.0 | 80 | 35,650,000 |
| G320-100-2P-20HP | 20HP | 380 | 69.2-86.6-102.0 | 40.0-38.0-34.5 | 100 | 36,540,000 |
| G325-80-2P-25HP | 25HP | 380 | 37.0-46.8-56.0 | 73.5-70.0-65.0 | 80 | 41,470,000 |
| G325-100-2P-25HP | 25HP | 380 | 74.8-93.5-112.2 | 46.0-44.0-40.0 | 100 | 41,890,000 |
| G330-80-2P-30HP | 30HP | 380 | 40.0-50.0-60.0 | 84.0-80.0-75.0 | 80 | 48,550,000 |
| G330-100-2P-30HP | 30HP | 380 | 80.0-100.0-120.0 | 52.5-50.0-46.0 | 100 | 48,570,000 |
| G340-80-2P-40HP | 40HP | 380 | 36.4-45.4-54.5 | 108.0-103.0-93.0 | 80 | 70,480,000 |
| G340-100-2P-40HP | 40HP | 380 | 74.8-93.5-112.2 | 74.0-70.0-64.0 | 100 | 71,320,000 |
| G340-150-2P-40HP | 40HP | 380 | 144.0-180.0-216.0 | 43.0-40.0-35.0 | 150 | 71,350,000 |
| G350-80-2P-50HP | 50HP | 380 | 40.0-50.0-60.0 | 132.0-125.0-119.0 | 80 | CALL |
| G350-100-2P-50HP | 50HP | 380 | 80.0-100.0-120.0 | 84.0-80.0-72.0 | 100 | CALL |
| G350-150-2P-50HP | 50HP | 380 | 144.0-180.0-216.0 | 51.0-48.0-43.5 | 125 | CALL |
